In the field of fast-paced filter production, the demand for high-precision, durable and efficient filter manufacturing equipment has never been higher. With the increasingly strict filtration standards in industries ranging from automobiles to HVAC, industrial dust control to pharmaceuticals, manufacturers are looking for solutions that can provide consistent high-quality results and support mass production. Among the key equipment in this field, the pleating machine stands out, especially the filter media reinforced knife pleating machine, which is a special tool to solve the unique challenges in the accuracy and durability of pleated filter materials. But what is this machine, how does it work, and why should filter manufacturers give priority to it over other options? This article answers these questions in detail, drawing on authoritative data, step-by-step guidance, and practical insights to provide a comprehensive overview that is both informative and actionable.

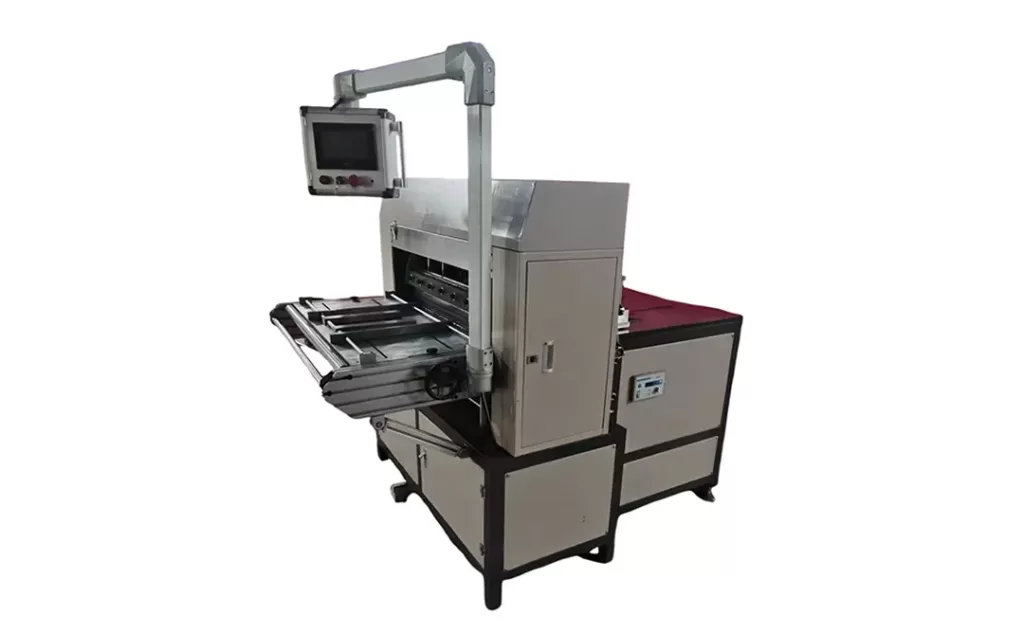

What is the filter media strengthening knife pleating machine?
In order to understand the value of reinforced knife pleating machine for filter media, its core function and role in the filter manufacturing process must first be understood. Knife pleating machine is a specially designed pleating equipment. By using a sharp strengthening blade to press materials into pleats with the same depth and spacing, accurate and uniform pleats are produced in filter media (including filter paper, non-woven fabrics and synthetic media). The term “reinforced” refers to the strengthened blade and supporting frame structure of the machine, which makes it different from standard pleating machine because it can realize heavy-load operation and long-term stability.
Unlike conventional pleating machines that may struggle with continuous industrial use or inconsistent pleat formation, the Strengthened Knife Pleating Machine is built for industrial-grade performance. It is designed to enhance structural rigidity, ensuring that each pleat maintains its geometry even during high-volume production runs. This accuracy is very important, because the number, depth, and uniformity of pleats will directly affect the effective filtering area of the filter, and then affect the filtering efficiency, airflow and overall product performance (Global Info Research, 2025). As a reference, according to an industry report of GEP Research Company in 2024, compared with the filter with irregular pleats, the filter with evenly spaced pleats can achieve more effective filtering area of up to 30%.
Core Definitions: Key Terms of filtering pleating
To fully grasp the role of the Strengthened Knife Pleating Machine, it is important to clarify key terms commonly used in the industry.
- Filter Media: The material used to trap particles, contaminants, or impurities in a filtration system. Common types include filter paper, non-woven fabrics, and synthetic media, all of which are compatible with the Strengthened Knife Pleating Machine.
- Knife pleating: A pleating method in which a sharp blade (or “knife”) is used to press the filter media into pleats to form uniform pleats with a uniform depth and spacing. Because of its accuracy and efficiency, this method is the first choice for industrial applications.
- Fold spacing: The distance between adjacent fold centers. Adjustable pleat spacing is an important feature, which allows manufacturers to customize pleats for different filter sizes, media thicknesses and application requirements.
- CNC Control: Computer numerical control, a system which uses pre-programmed software to control the operations of machines. In the Strengthened Knife Pleating Machine, CNC control with a touchscreen interface ensures precise parameter setup and minimizes human error.
How Does a Strengthened Knife Pleating Machine Work? Step-by-Step Guide
The Strengthened Knife Pleating Machine operates through a systematic, automated process that ensures consistency and precision. The following is a step-by-step decomposition of its operation for easy reference and understanding.
- Material Preparation: First, load the filter media (filter paper, non-woven fabric or synthetic media) onto the feeding system of the machine. Check the media to make sure that it is free of defects, because any irregularities can affect the quality of folds. The feeding system of the machine is designed to deal with media with various thicknesses, supporting versatility in production.
- Parameter Setup: Using the CNC controller with a touchscreen HMI (Human-Machine Interface), the operator inputs key parameters, including pleat pitch, pleat depth, and production speed. The adjustable pleat spacing function allows different product specifications to be customized, from standard plate filters to special filter products. This procedure minimizes manual adjustments and reduces the risk of operator error.
- Media feeding: The feeding system of the machine pulls the filter media forward at a uniform speed to ensure uniform tension. This is very important to keep uniform folds, because uneven tension can lead to folds being too tight, too loose or misplaced.
- Knife pleating Process: The reinforcing blade descends at precise intervals, and the filter media is pressed into the pleating roller. The reinforced blade and supporting frame structure ensure that the blade can maintain its rigidity even in the continuous operation process, and prevent it from bending or wearing, so as not to affect the pleating quality. Then the pleating roller fixes the pleats to form a unified pleat with consistent depth and spacing.
- Pleat inspection: When the pleated media leaves the machine, it will pass through a visual inspection system (optional on some models) to ensure the consistency of wrinkles. Any defects will be marked, allowing operators to adjust the parameters in real time if necessary.
- Finished Product Collection: The pleated filter media is collected on a roll or cut to the desired length, depending on the application. The machine’s high-efficiency design supports continuous production, making it ideal for high-volume manufacturing environments.
Key Specifications of the Strengthened Knife Pleating Machine
The technical specifications of the Strengthened Knife Pleating Machine are tailored to meet the demands of industrial filter production. The following is a detailed table listing its core specifications according to the manufacturer’s data and industry standards.
| Feature | Specification |
| Applicable Materials | Filter paper, non-woven fabrics, synthetic media |
| Pleat Type | Knife pleating with reinforced frame |
| Adjustable Pleat Pitch | Customizable for different media thicknesses and applications |
| Control System | CNC controller with touchscreen HMI |
| Motor Power | 3.5 kW |
| Working Air Pressure | 0.6 MPa |
| Warranty | 1 year |
| Origin | China |
Unique Advantages of the Strengthened Knife Pleating Machine
Compared to standard pleating machines and other filter manufacturing equipment, the Strengthened Knife Pleating Machine offers several distinct advantages that make it a valuable investment for filter manufacturers. These advantages stem from its design, function and durability, and are supported by industry data.
1. Reinforced Knife Pleating System for Long-Lasting Performance
The reinforced blade and supporting frame structure of the machine can withstand heavy-duty pleating operations. Different from the standard knife paper pleating machine, this machine may have worn blades or bent frames after long-term use, and it can maintain stable performance even during continuous industrial production. According to a Research conducted by Research in 2025, reinforced pleating systems can reduce the downtime of the machine by 40% compared with the non-reinforced pleating system (https://www.qyresearch.com.cn/reports/multifunctional-pleating-machine-p1928882.html). Over time, this durability will reduce maintenance costs and improve production efficiency.
2. Precise pleat control enhances the filtration performance
The latest optimized pleating mechanism provides consistent pleating depth and spacing, which is very important to maximize the effective filtering area of the final product. As pointed out by GEP research (2024), compared with the filter with irregular pleats, the uniform pleated structure can improve the efficiency of the filter by as much as 25%. The accuracy of the machine ensures the consistency of each fold and eliminates gaps or overlaps that could reduce filtration performance. This is especially important for automobile, HVAC and other industries, in which the filter efficiency will directly affect the quality and safety of products.
3. Adjustable Pleat Pitch for Versatility
The adjustable pleat spacing function allows operators to configure the machine to adapt to various media thicknesses and application requirements. From standard plate filters to special filter products, this versatility eliminates the need for multiple machines, reduces equipment costs and saving production space. Whether manufacturing HVAC filters for commercial buildings or industrial dust filters for manufacturing factories, machines can be quickly adjusted to meet specific product specifications.
4. User-Friendly CNC Control for Reduced Error
The machine is equipped with a CNC controller and touch screen interface, which simplifies the parameter setting and operation. Operators can input accurate pleating parameters to minimize manual adjustments and reducing the risk of human error. This user-friendly design also reduces training time for new operators and makes it easier for the machine to be integrated into existing production lines. In a survey conducted by Global Info Research (2025) on filter manufacturers, 85% of respondents reported that CNC-controlled filter manufacturing equipment reduced the operation error by at least 30%.
5. Industrial-Grade Durability for Continuous Operation
Designed with a sturdy frame and precision components, the Strengthened Knife Pleating Machine is built to withstand long-term continuous operation with minimal maintenance. Its industrial-grade structure ensures that it can handle the needs of mass production, making it ideal choice for factories and production lines that require consistent product quality. The durability of the machine also extends its service life, providing a higher return on investment than the less sturdy pleating machine.
Major Application Scenarios
The Strengthened Knife Pleating Machine is versatile and suitable for a wide range of filter manufacturing applications. Its design and function make it very suitable for the following scenes.
1. Plate filter media pleating
Plate filters are used in a variety of applications, including HVAC systems, industrial clean rooms and residential air purification. The precise pleat control of the machine ensures that the plate filters has uniform pleats, thus maximizing the filtering area and efficiency. This is essential for maintaining indoor air quality and meeting air filtration industry standards.
2. The Production of HVAC filter
HVAC systems need high-quality filters to remove dust, pollen and other pollutants in the air. Strengthen the capability of knife pleating machine, handle large number of filter media, and produce consistent pleats, making it an ideal choice for HVAC filter production. Its adjustable pleat spacing allows manufacturers to manufacture filters of different sizes and specifications to adapt to different HVAC systems.
3. Industrial dust filter manufacturing
Industrial dust filters are used in factories, power stations and other industrial environments to capture dust and other airborne particles. These filters need durable and accurate pleating to withstand harsh industrial environment. The ruggedized knife pleating system and industrial-grade durability of this machine make it very suitable for this application, ensuring that filters can handle high levels of dust and maintain its performance for a long time.
4. Automotive Filtration Media Pleating
Auto filters (including air filters, oil filters and fuel filters) require high accuracy and consistency to ensure the best performance. The Strengthened Knife Pleating Machine‘s accurate pleat control and adjustable settings make it ideal for automotive filtration media pleating. It can deal with the thin and fine media used in auto filters, while maintaining uniform pleats, which is very important for protecting engine parts and improving fuel efficiency.
Frequently Asked Questions (FAQs)
To address common questions about the Strengthened Knife Pleating Machine, we’ve compiled a list of frequently asked questions based on manufacturer data and customer feedback.
Q1: What materials can this machine pleat?
A: The Strengthened Knife Pleating Machine is designed to pleat a variety of filter media, including filter paper, non-woven fabrics, and synthetic media. It can deal with media with different thicknesses, making it suitable for various filter manufacturing applications.
Q2: Can the wrinkle spacing be adjusted?
A: Yes. This machine has adjustable pleat spacing, which allows the operators to configure pleat spacing to adapt to different media thicknesses and application requirements. This versatility eliminates the need for multiple machines, and supports customization for different filter.
Q3: Does it use the computer control interface?
A: Yes. The machine is equipped with numerical control controller and touch screen man-machine interface, which simplifies parameter setting and monitoring. This computerized control minimizes manual adjustments, reduces the operator’s mistakes and ensures the consistency of production results.
Q4: How durable is the machine for continuous industrial operation?
A: The machine is equipped with reinforced blades, supporting frames and a solid frame structure, which makes it suitable for long-term continuous industrial operation. Its industrial-grade components require minimal maintenance, reducing downtime and ensure long-term stable performance.
Q5: How long is the guarantee period for this machine?
A: The Strengthened Knife Pleating Machine comes with a 1-year warranty, covering defects in materials and workmanship. This kind of guarantee gives manufacturers peace of mind and supports their investment.
Why do you choose an enhanced knife folding machine for your filter Production?
In an industry where precision, efficiency, and durability are critical, the Strengthened Knife Pleating Machine stands out as a reliable solution for modern filter manufacturers. Its reinforced design, accurate pleat control, adjustable settings and user-friendly CNC interface make it a valuable supplement to any series of filter manufacturing equipment. Whether you are producing HVAC filters, industrial dust filters, automobile filters or plate filters, this machine can support mass production and provide consistent high-quality results.
