In the fast-growing global filtration equipment market, the quality of the filter frame directly affects the performance and service life of filtration products. As a core process in filter frame manufacturing, spot welding requires high precision, stability, and efficiency to meet the increasing demand for high-volume production. There are many welding machine suppliers to choose from, but choosing the right spot welder for filter frame production can be a game changer for manufacturers. This paper will comprehensively answer this question by exploring what is the filter frame spot welding machine, its unique advantages, technical specifications, application scenarios and key considerations-based on authoritative data, clear definitions and practical guidelines, to help you make a wise decision.
1. What Is a Filter Frame Spot Welding Machine?

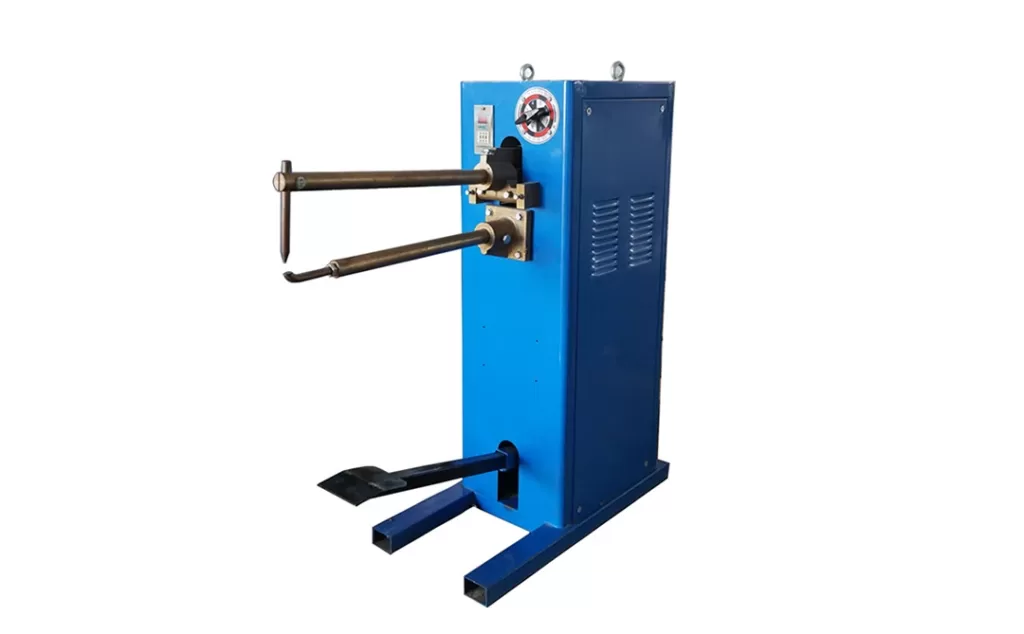

First of all, let’s clarify the core definition: A filter frame spot welding machine is specialized equipment designed for the precision welding of filter frames and related metal components. of filter frames and metal parts in industrial filter products. Unlike general-purpose spot welders, it is optimized to handle the thin metal sheets, wire meshes, and delicate structures of filter frames, ensuring strong, consistent, and aesthetically pleasing welds without damaging the filter media or affecting filtration performance.
2. Key Data Sources: The Demand for Spot Welding Machine for Filter Frame is Increasing
In order to understand the importance of choosing the right spot welder for filter frames, let’s look at two authoritative data sources, which highlight the growth of the market and technical requirements.
Data Source 1: According to industry research reports, the global filtration equipment market will reach about 1200 billion US dollars by the end of 2025, with an estimated growth rate of 6.5% in 2026 and a compound annual growth rate (CAGR) of over 7% by 2030. The report emphasizes that with the increasingly stringent industrial filtration standards, the demand for high-precision manufacturing equipment, including special spot welding machines, is rapidly increasing (Global Environmental Protection Research Network, 2026).
Data Source 2: The 2024 Global Resistance Spot Welding Equipment Industry Report released by market research firms shows that the global market for spot welding machines used for the manufacture of filter equipment is expected to grow by 8.2% CAGR from 2024 to 2030. The report points out that manufacturers are giving more and more priority to spot welding machines with adjustable parameters and industrial durability to meet the requirements of high consistency in the production of filter frame.
3. Unique Advantages of Our Spot Welding Machine for Filter Frame
As a professional welding machine supplier, our filter frame spot welding machine stands out from ordinary spot welding machines and has five core advantages to solve the special challenges of filter frame manufacturing.
3.1 Robust and precise spot welding capability
This machine is specially designed for filter frames, which can perform uniform spot welding on all parts, which significantly improves the strength and reliability of the joint. Unlike ordinary spot welders, which may produce uneven welds on thin metal plates, our equipment can ensure that the size and strength of each weld nugget are consistent, which is very important for filter frames that must withstand pressure and vibration during use. This precision reduces the risk of frame deformation or breakage, directly enhancing the quality of the final filter equipment.
3.2 Fully adjustable welding parameters
Operators can select the material type (for example, stainless steel or carbon steel) and filter frame parts. This flexibility solves a common pain point for manufacturers: different filter frames need different welding settings, while spot welding machines with fixed parameters often lead to unqualified results. By adjusting the parameters, our machine optimizes welding results of each application, ensuring that there is no overheating, under welding or material damage.
3.3 Industrial-Grade Structure for Continuous Operation
The machine is made of heavy-duty frame and high-quality welded parts. It is designed for long-term continuous operation in harsh factory environment and is the perfect choice for large-capacity production lines. Unlike light spot welding machines that need frequent maintenance or replacement, our industrial-grade equipment has excellent durability, reducing the manufacturer’s downtime and maintenance costs. Its sturdy design ensures stable performance even after many years of daily use.
3.4 Seamless integration into production workflows
Our spot welding machine integrates easily into automated or semi-automated welding lines, reducing manual intervention and significantly improving production efficiency. For filtration equipment manufacturers who want to expand their production scale, this integration capability eliminates bottlenecks caused by manual welding. In addition, it can cooperate with other equipment (such as sealing machine) to form a complete filter frame assembly line, which simplifies the whole manufacturing process from raw material to finished product.
3.5 Operator friendly control
The machine is equipped with intuitive controls device, which can be mastered by the operators with minimal training. This reduces the learning curve and ensures consistent operation across the production team—critical for maintaining weld quality in high-volume manufacturing. Unlike complex spot welding machines which require skilled technicians, the user-friendly interface of our equipment allows new operators to easily set parameters, start welding and monitor performance.
4. Technical Specifications for Spot Welding Machine of Filter Frame
The following table lists the technical specifications of our spot welding machine in detail, providing clear parameters for manufacturers to evaluate whether it is suitable for the production requirements of filtration equipment.
| Feature | Description |
| Welding Type | Spot welding (optimized for filter frames) |
| Power Supply | Electric |
| Welding Current | Adjustable (to match material thickness and type) |
| Welding Pressure | Adjustable (ensures firm contact without material damage) |
| Control System | Manual/Electronic control (intuitive operation) |
| Machine Weight | Approx. 800 kg (industrial-grade stability) |
| Warranty | 1 year (comprehensive after-sales support) |
| Origin | China (high-quality manufacturing at competitive prices) |
5. Step-by-Step Guide to Using the Spot Welding Machine for Filter Frames
Using our spot welder is very simple, even for operators with limited experience. Follow these four core steps to achieve the best welding effect of the filter frames.
Step 1: Preparation
Clean the filter frame assembly (metal mesh, metal wire bracket, etc.) to remove dirt, oil or oxide layer — these impurities can increase the resistance or lead to uneven heating, which will affect the welding quality. Ensure that the components are assembled and aligned correctly, because misalignment will lead to unstable or uneven welding. Precise alignment is very important for the frame of filtration equipment to ensure the proper fit of the final product with other filter components.
Step 2: Adjust welding parameters
According to the material type and thickness of the filter frame assembly, the welding current, time and pressure are adjusted by using the intuitive control panel of the machine. For example, thinner stainless steel mesh needs lower current and shorter welding time to avoid burning through, while thicker wire bracket needs higher current to form a solid welding nugget. As a professional supplier of welding machines, we provide a parameter guide to help operators make correct adjustments quickly.
Step 3: Conduct spot welding
Place the assembled filter frame between the machine electrodes. Activate the machine to apply pressure, ensuring the electrodes clamp the components firmly (pre-pressure stage). Then, the machine passes a current through the contact points, generating resistance heat to form a nugget (welding stage). After the set welding time, the current is cut off, but the pressure is kept to allow the welding nugget to cool and solidify (cooling stage).
Step 4: Check and end
After the welding cycle is completed, remove the filter frame and check the consistency, strength and appearance of the welding seam. Check whether there are any cracks, unevenness or weak joints-if any problems are found, adjust the parameters as necessary and re-weld. For high-volume production, we recommend integrating a simple inspection step into the workflow to ensure every filter frame meets filter equipment quality standards.
6. Major Application Scenarios
Our filter frame spot welding machine is specially designed for the manufacture of filter equipment, which is applicable to the following situations.
- Welding filter frames: Suitable for all kinds of filter (stainless steel, carbon steel), used in air filters, water filters and industrial process filters.
- Metal wire support structures: The metal wire supports of the filter frame are welded to ensure that they can withstand pressure and keep their shape during use.
- Air filter cages: The metal cages used in manufacturing industrial air filters need strong and uniform welding to support the filter media.
- Pre-assembly welding on industrial filter products: Welding small parts (e.g. Brackets, connectors) to the filter frames.
7. Common Questions About Spot Welding Machines for Filter Frames
In order to solve the problems that manufacturers are generally concerned about, we have compiled the following FAQs based on real customer inquiries and industry best practices.
Q 1: What materials can this spot welding machine weld?
A 1: It is specially designed for welding steel parts used in metal mesh frames, metal wire supports and other filter assemblies. It works effectively with common filter frame materials such as stainless steel, carbon steel, and galvanized steel—all widely used in filter equipment manufacturing.
Q 2: Can the welding parameters be adjusted according to different filter frame sizes?
A 2: Yes-the welding current, time and pressure can be set according to the material type and thickness of the filter frame assembly. This flexibility enables the machine to handle filter frames of various sizes and designs, making it a general choice for the manufacturers of filter equipment.
Q 3: Is this machine suitable for high-volume production?
A 3: Of course. Its industrial-grade structure supports continuous operation and can be integrated into automatic or semi-automatic production lines to reduce manual intervention. This makes it ideal for high-volume filter equipment production, where consistency and efficiency are critical.
Q 4: How long does it take to train operators to use this machine?
A 4: The machine has intuitive controls function, so operators usually only needs 1-2 days of training to master basic operation. We provide a detailed user manuals and on-site training support (as part of our service as a welding machine supplier) to ensure that the operators can use the machine efficiently and safely.
Q 5: What kind of after-sales support does the aircraft have?
A 5: We guarantee the machine for one year, including all manufacturing defects. Our after-sales service team provides technical support by telephone, email and on-site visit (if necessary) to solve any problems quickly. As a reliable welding machine supplier, we give priority to customer satisfaction and ensure that your production line has the shortest downtime.
8. Why Choose US as Your Welding Machine Supplier?
In the highly competitive spot welding machine and filter equipment manufacturing market, it is as important to choose the right welding machine supplier as to choose the right equipment. That’s why we stand out.
We specialize in manufacturing spot welding machines specially designed for filtration equipment, and have many years of experience in understanding the unique requirements of filtration frame production. Our equipment is not just a general-purpose spot welder—it is optimized for the precision, durability, and efficiency required in filter manufacturing. We provide transparent technical specifications, authoritative data support and comprehensive after-sales service to ensure that our customers get the maximum value from investment.With the continuous growth of the global filtration equipment market, having a suitable spot welder is the key to maintaining competitiveness. Our filter frame spot welding machine integrates accuracy, flexibility and durability, which can help you to improve production efficiency, product quality and meet the growing demand for high-quality filter equipment.
