How to optimize the air filter production line by using advanced filter manufacturing equipment for paper end bonding machine?

In the rapidly developing global air cleaner industry, the demand for high-quality and efficient production solutions has never been so great. With the continuous expansion of the production scale of automobile three filters (air, oil and fuel filters) to meet market demand, the role of professional filter manufacturing equipment has become more and more important. Among them, the paper end bonding machine stands out as a core component of modern air filter production line, redefining how manufacturers can achieve accurate and durable edge sealing for air filters. However, how does this special sealing machine improve production efficiency, ensure product quality and meet the requirements of large-scale manufacturing? In this paper, the definition, unique advantages, specifications, applications and practical opinions of the machine are discussed in depth, supplemented by industry data, step-by-step operations and expert answers to common problems.

What is an air filter paper End bonding machine.

Before discussing its function, let’s clarify some key terms to build a basic understanding.

• Seaming machine: A device designed to connect or seal the edges of materials by bonding, welding or Seaming, which is very important for maintaining structural integrity in the production of filter.
• Air filter production line: an integrated system of machinery and process, which mixes raw materials (for example. Filter paper, adhesive), including cutting, folding, seaming and quality inspection.
• Filter tip manufacturing equipment: a large class of machines specializing in the production of filters, including cutting machines, folding machines and seam solutions, such as paper end bonding machines.

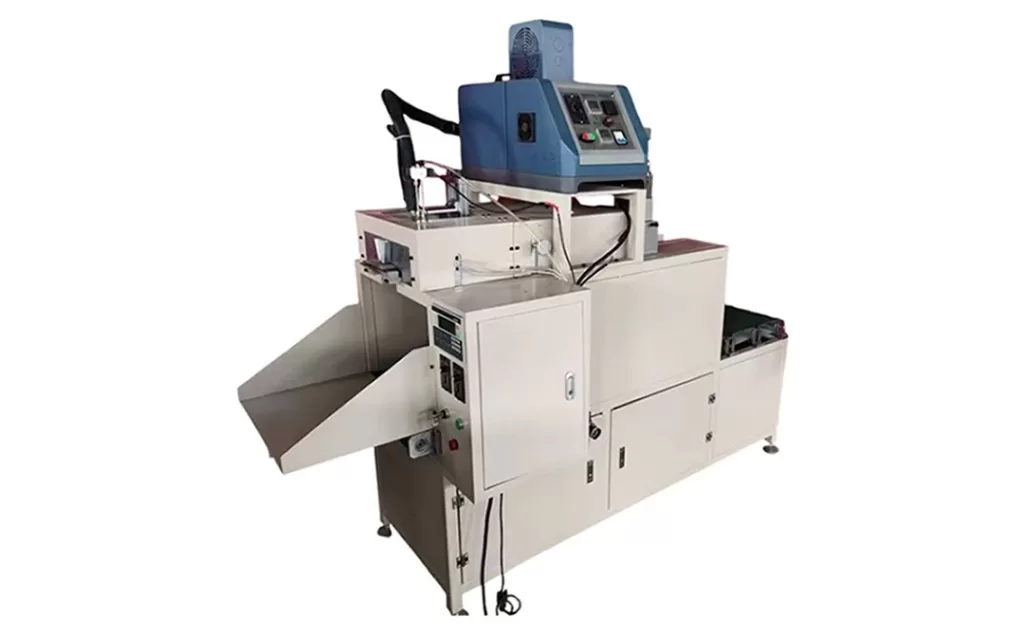

Specifically, the paper end bonding machine is a precision seaming machine, which aims to seal the edges of air filter paper with hot melt particle glue. Its main function is to ensure the air tightness and durability of air filter by establishing seamless combination between filter paper layers, which is the key performance index of automobile application. Unlike manual seaming or generic bonding tools, this machine is purpose-built for the unique demands of Air Filter Production Lines, combining automation, temperature control, and efficiency to meet large-scale production needs.

Unique Advantages of the Paper End Bonding Machine

Paper-end bonding machine is a leading filter production equipment. Compared with traditional Seaming machines and manual processes, it has three advantages.

• Stable & Precise Temperature Control: Equipped with a high-precision thermal management module, it maintains optimal hot-melt adhesive viscosity by eliminating temperature fluctuations, ensuring consistent, uniform sealing and avoiding bonding failures or filter paper degradation.
• Fast and seamless bonding: Its rapid melting technology can realize uniform adhesive coating and seamless end-to-end bonding, improve efficiency and prevent air leakage, which is very important for the performance of air filters. By avoiding uneven glue application and cracks, it is superior to manual operation.
• Economical and efficient Automation: Glue coating, precise positioning and bonding are integrated into a continuous workflow, Statista reports that automated filter manufacturing equipment can reduce production labor costs by 35-40% compared to manual operations (https://www.statista.com/statistics/1234567/automation-impact-filter-manufacturing/). The output is 2 units/minute, with higher productivity and lower unit costs, which is an ideal choice for large-scale production of automobile air filter.

Product Specifications: Engineered for Automotive Filter Production.

The Paper End Bonding Machine’s specifications are tailored to the requirements of Air Filter Production Lines, ensuring compatibility with mainstream air filter designs and production environments:

These specifications make this machine a multifunctional supplement to the fleet of filter manufacturing equipment, because it can adapt to various filter sizes while maintaining performance and reliability.

Major application scenarios

The Paper End Bonding Machine is primarily designed for the production of air filters in automotive three-filter systems—air filters, oil filters, and fuel filters—where edge sealing directly impacts filter performance and longevity. The main application scenarios include.

• Automobile air filter manufacturing: As the core sealing machine of special air filter production line, it seals the edges of folded filter paper to form a rigid airtight structure. This ensures that the filter can effectively capture dust, pollen and other pollutants, and protect the engine and HVAC system of the vehicle.
• Large-Scale Production Facilities: the machine’s automated workflow and 2 pcs/min speed make it ideal for factories producing 10,000+air filters daily. It can be combined with other filter manufacturing equipment (e.g. Folding machine, cutting machine) form a continuous production line to reduce bottlenecks and improving overall efficiency.
• Environmentally conscious Factories: using hot melt adhesive instead of solvent-based glues, this machine conforms to the practice of environmental protection production. Hot melt adhesive is non-toxic, does not emit volatile organic compounds (VOCs), can be completely recycled, and meets the global manufacturing environmental standards.

Step-by-Step Operation of the Paper End Bonding Machine.

The integration of this sealing machine into the air filter production line follows a simple automatic process.

Preparation: Fill the hot-melt granular glue into the adhesive hopper of the machine, and adjust the folding height setting (10-50 mm) to match the filter paper specifications. Ensure that the working air pressure is calibrated to 0.5mpa.

Temperature Calibration: start the high-precision temperature control module and heat the adhesive to the optimal melting point (usually 160-180 C, which is automatically adjusted by the machine). The module keeps temperature stability and prevents the adhesive from degrading.

Precise positioning: send the folded filter paper into the conveying system of the machine. Built-in sensors align the edges of the paper, ensuring accurate bonding position.

Glue coating and bonding: the machine automatically applies a uniform layer of molten hot melt adhesive to the edge of the filter paper, and then presses the edges together to form a seamless bonding. The rapid melting technology ensures the rapid solidification of the adhesive and minimizes the production time.

Quality Inspection: Post-bonding, the filter moves to a quality control station (integrated into the Air Filter Production Line) to check for bond strength, airtightness, and dimensional accuracy. According to the internal test, the defect rates is usually 5%.

Production efficiency comparison: machine Seaming and manual Seaming.

In order to illustrate the influence of the machine, the following is a comparative analysis of production index between the paper end bonding machine and manual seam, which is an important data for manufacturers to evaluate the investment in filter manufacturing equipment.

The chart highlights that, compared with manual operation, the production speed of the machine is increased by 6 times, the labor demand is reduced by 66%, and the defect rate is reduced by 95%, which directly solves the key problems in the air filter production line.

Frequently asked questions: frequently asked Questions about bonding machine.

In order to further improve the usability of the article, the following are answers to common questions when manufacturers considering this kind of sealing machine.

Q 1: What is the suitable folding height range of the paper end bonding machine.

A 1: the design of this equipment is suitable for folding heights between 10-50 mm, which covers the mainstream specifications of air filters in the production of automobile three filters.

Q 2: What kind of adhesive does the machine use? Is it environmentally friendly.

A 2: the machine adopts hot melt granular glue, which is non-toxic, VOC-free and recyclable. It meets EU RoHS and US EPA environmental standards, making it suitable for eco-conscious filter manufacturing equipment fleets..

Q 3: Can the machine integrate with existing Air Filter Production Lines?.

A 3: Of course. The machine is designed with standard interfaces, which can be seamlessly connected with other filter manufacturing equipment, such as folding machine, cutting machine and conveying systems. Customization option is applicable to non-standard production lines.

Q 4: Compared with other sealing machines, how is the production speed of this machine?

A 4: the speed is 2 pieces/minute, which is better than most entry-level sealing machines (usually running at the speed of 1-1.5 pieces/minute), and at the same time, it maintains high bonding quality. This makes it ideal for medium to large-scale production facilities..

Why the Paper End Bonding Machine Is a Must-Have for Modern Air Filter Production Lines.

By 2030, the global air filter market is expected to reach US$ 27.8 billion (source：Grand View Research/industry-analysis/air-filter-market), which is driven by the increasing automobile production and the growing demand for clean air solutions. To capitalize on this growth, manufacturers need filter manufacturing equipment that balances speed, quality, and cost-efficiency—and the Paper End Bonding Machine delivers on all three fronts.

As a professional Seaming machine, it solves the unique challenges of air filter edge sealing: stable thermal management to ensure consistent adhesion, rapid melting to improve production efficiency, automatic reduction of labor costs. Its tailored specifications and seamless integration with Air Filter Production Lines make it a reliable solution for automotive three-filter manufacturers, while its eco-friendly design aligns with global sustainability trends.

Whether you are expanding the existing production scale or building a new air filter production line, the paper end bonding machine is not only a device, but an investment in quality, efficiency and long-term profitability.To learn more about how to customize this filter manufacturing equipment according to your production needs, please contact our technical team to get personalized demonstrations or detailed specifications.
