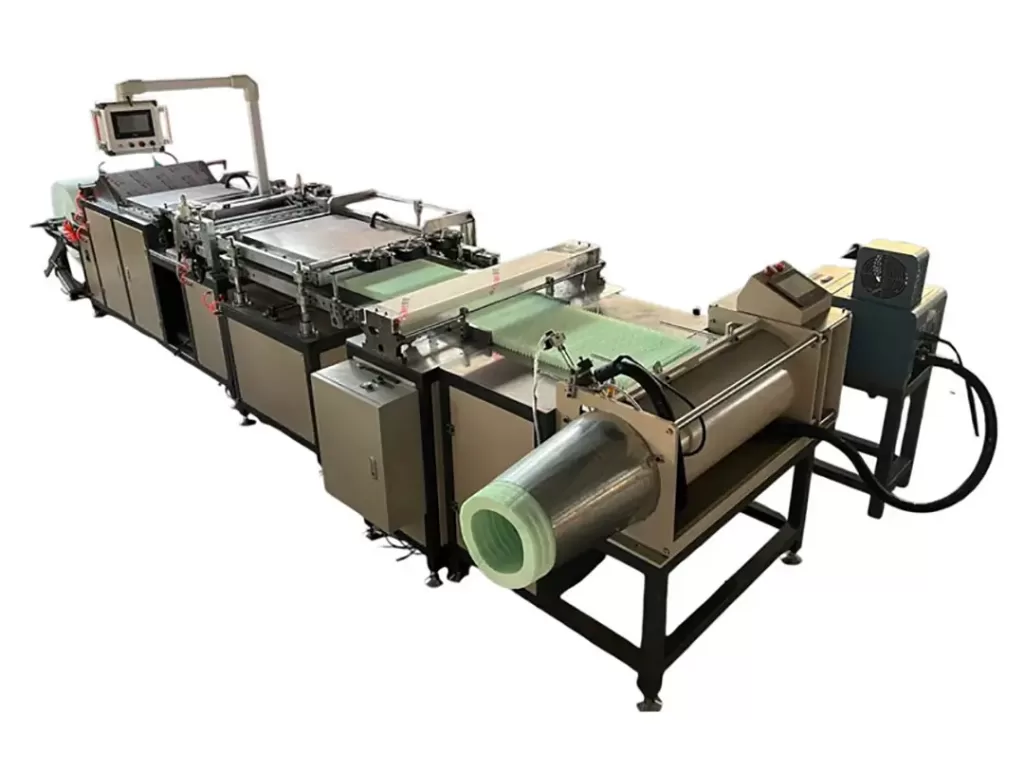

What is the heavy air filter pleating production line and how does it revolutionize manufacturing?

In the field of industrial manufacturing, efficiency, accuracy and reliability are of paramount importance. This is especially true in the production of important components such as heavy-duty air filter machine, which can protect engines, turbines and ventilation systems from harmful pollutants. At the heart of this production process lies a sophisticated piece of equipment: the Heavy Duty Air Filter Pleating Line. But what is it and why is it so important to manufacturers? This comprehensive guide discusses the mechanism, advantages and applications of this integrated system, which seamlessly combines an air filter, a paper cutters and paper folding machines.

Defining the Heavy Duty Air Filter Pleating Line

A Heavy Duty Air Filter Pleating Line is not a single machine but an integrated production system. Its main function is to automatically produce folding filter media, which is the core component of any plate or cylinder air filter. The pleat design maximizes the filtering surface area, improves the dust holding capacity, improves the airflow and reduces the resistance in a compact space.

This product line usually integrates three key machines into a seamless workflow.

1. Pleating machine or folding machine (paper folding machine): this is the starting point. It can accurately fold flat filter paper (non-woven fabric, glass fiber, etc.) into a continuous and uniform zigzag pattern.

2. The Cutting Machine (Paper Cutting Machine): Once the media is pleated to the required length, this machine makes a precise, clean cut to separate the continuous pleated sheet into individual filter blanks.

3. The Paper Roll Sewing Machine (Part of the Integrated Line): This component handles the preparatory stage, managing the large rolls of raw filter media and feeding them correctly into the pleating machine.

Integrating the three functions of folding, cutting and loading into one production line is the definition of modern air cleaner production system.

Unique Advantages: Why do you choose comprehensive pleating lines?

Compared with independent machines, the main benefit of using an integrated pleating production line is that the production efficiency and consistency are greatly improved. Let’s break down the main advantages.

· Simplified workflow: By merging the processes, manufacturers do not need to manually transfer materials between different stations. This reduces labor costs, minimizes the operational damage to the precision filter media, and greatly speeds up production time. A study by the Manufacturing Research Institute emphasizes that integrated automation can increase productivity by as much as 20% (Source: Manufacturing Research Institute, “The Future of automation” report), mainly by reducing non-value-added steps.

· Unmatched accuracy and consistency: human intervention is the main source of variation. The automatic production line ensures that each pleat has exactly the same height, each cut is very straight, and each filter blank is exactly the same. This consistency is very important to the performance and quality of the final air cleaner product.

· Modular Design Flexibility: a significant feature of advanced lines, like the model we are examining, is their modular design. Although these units are designed to work together, the folding, cutting and paper insertion modules can usually run independently. This provides incredible flexibility for manufacturers to maintain a module without stopping the whole production line, or to use a specific machine to do customized small batch work.

· Reduced Operational Costs: Higher speed and reduced labor directly lower the cost per unit. In addition, the accuracy of the automatic paper cutter machine minimizes the waste of materials, thus further saving raw materials.

Take a closer look at the product specifications: T-650

To understand the capabilities of a pleating line, it’s helpful to examine a real-world example. Model T-650 is a solid system, which is specially designed for manufacturing the jacket assembly of large air filter elements. The following is its detailed specifications.

1. Air filter paper folding machine (core paper folding machine)

· Model: T-650

· Folding height range: 10-75mm (to provide versatility for different filter machinery).

· Pleating Speed: 5-50 meters per minute (it can be adjusted according to different materials and quality requirements.

· Power Consumption: Preheating (4kW), Post-folding (8kW), Humidification (2 kW).

· Total Power: 5kW

2. Cutting Machine (The High-Precision Paper Cutting Machine)

· Model: T-650

· Operating air Pressure: 0.6 MPa.

· Cutting Speed: 3 seconds for each piece (continuous production efficiency is high.

· Power of motor: 1 kW

3. Paper roll sewing machine (material handling device)

· Model: T-650

· Paper roll diameter: 240-320mm.

· Motor Power: 1.1.

· Speed: 1-2 pieces per minute (synchronous with the output of the production line).

Overall line attributes:

· Size: 550012501500mm (This is a compact size in terms of its capacity.

· Country of Origin: Hebei, China.

· Warranty period: 1 year

Usage: specially used for manufacturing air filter element

· Heavy-Duty Air Filters: For construction equipment, mining trucks, and agricultural machinery.

· HVAC air Filters: Large-scale plate filters for commercial and industrial ventilation systems.

· Engine air intake Filters: used in trucks, buses and generators.

· Gas turbine intake Filters: clean air is very important for safe and efficient operation.

Essentially, any industry that relies on high-performance folding air filter machinery is a potential user of this air filter technology.

Frequently Asked Questions

Question 1: What are the benefits of modular design for production facility?

A: It allows independent maintenance of individual modules (folding and cutting) to minimize production downtime.

Question 2: Why is it important to adjust the pleating speed?

A: It enables the machine to handle different types of precise or solid filter media without damage, thus ensuring universality.

Question 3: Can this production line handle any filter paper?

A: It deals with ordinary materials, such as polyester and glass fiber. Be sure to confirm the compatibility of the specific media with the supplier.

Conclusion

The Heavy Duty Air Filter Pleating Line represents the gold standard in filter manufacturing automation. By integrating advanced paper folding machine, a high-speed paper cutter and automatic material handling into a unified air filtration system, it provides the precision, efficiency and expansibility needed by modern industries. For any manufacturer seeking to improve product quality, increase production and reduce operating costs, investing in such a production line is a strategic move toward a more competitive and profitable future.
