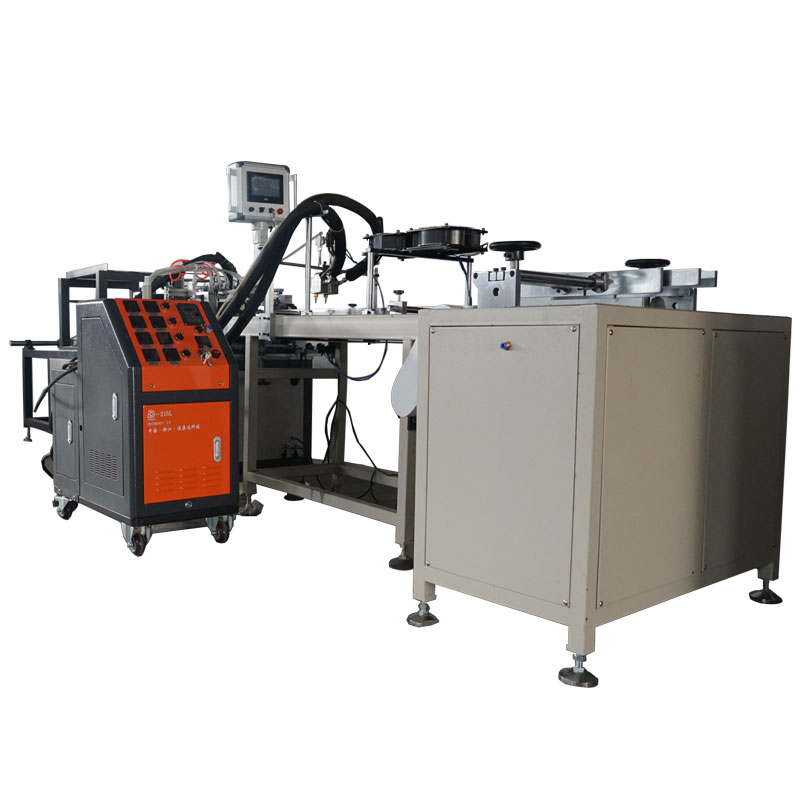

Panel Air Filter Rotary Pleating Paper Machine
Product Description
Automatic Rotary Pleating Machine for Panel Air Filter Media
This Panel Air Filter Rotary Pleating Paper Machine is engineered to produce high-quality pleated paper media for panel-type air filters used in HVAC systems, industrial filtration, and air purification applications. The machine’s rotary pressing system ensures uniform pleat spacing and consistent fold depth, resulting in enhanced filtration area and improved airflow performance.
Product Details:
Key Features & Benefits

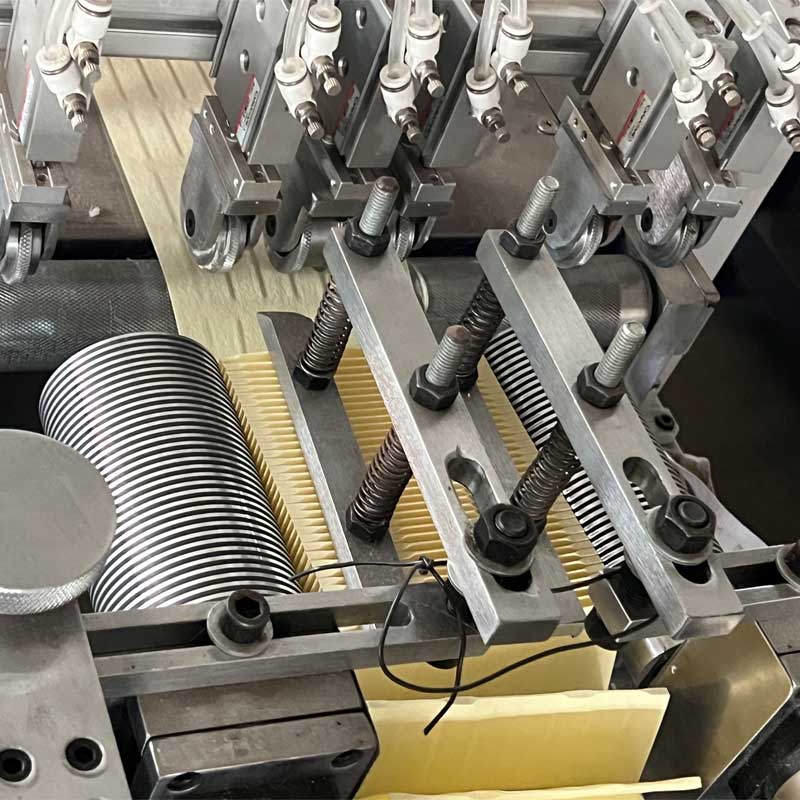

Rotary Pleating System
The rotary pleating mechanism delivers stable, continuous pleat formation with minimal manual intervention, improving production consistency.
Adjustable Pleat Spacing
Operators can modify pleat spacing to match different filter specifications and media types, enhancing versatility.
CNC Control & Precision
Equipped with CNC control for precise positioning and repeatability, ensuring consistent product quality batch after batch.
User-Friendly Interface
Touchscreen HMI makes parameter setup intuitive, reducing training time and operational errors.
Industrial-Grade Construction
Designed for demanding industrial production environments with robust drive components and durable mechanical structures.
Technical Specifications
| Feature | Specification |
| Applicable Material | Filter paper media |
| Pleat Width | Adjustable |
| Operating Mode | Automatic rotary pleating |
| Control System | CNC controller |
| Motor Power | 3 kW |
| Working Air Pressure | 0.6 MPa |
| Warranty | 1 year |
| Origin | China |
Applications
This rotary pleating machine is ideal for manufacture of:

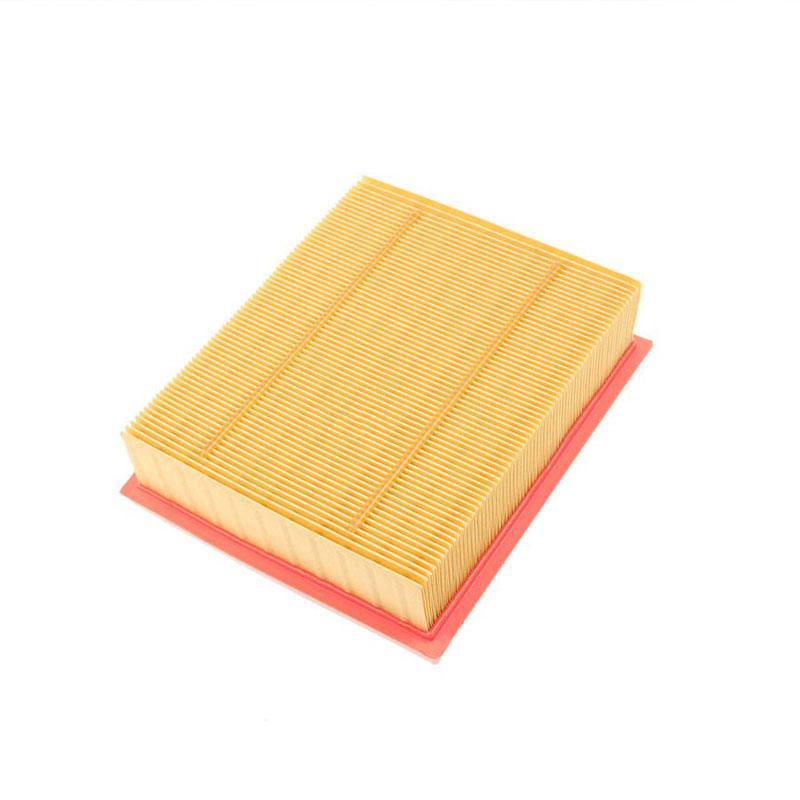

- Panel air filter media
- HVAC filters for residential and commercial units
- Industrial air purification filter panels
- Dust collection filter panels
The machine supports production lines focused on consistent pleat formation and performance reliability.
Why Choose This Machine?
- Enhanced Filter Surface Area increases filtration efficiency
- Adjustable Pleat Configuration provides flexibility
- Reliable CNC Accuracy ensures uniform pleating
- Automated Operation reduces labor and improves throughput
Frequently Asked Questions (FAQ)
Q: What materials can this machine pleat?
A: Filter paper and similar media designed for panel air filters.
Q: Can pleat spacing be adjusted?
A: Yes, adjustable pleat spacing supports different product specifications.
Q: What control system is used?
A: CNC controller with touchscreen interface.
